Qu'est-ce qui est requis ?
Nous avons testé à peu près toutes les configurations imaginables. Voici l'équipement optimal pour le travail multi-caméras !
Liste d'équipement multi-caméras
Liste d'équipement pour le travail multi-caméras en bullet-time, photogrammétrie ou gaussian splat avec Xangle Camera Server
Ceci est la liste d'équipement recommandée pour utiliser notre solution et c'est exactement ce que nous utilisons au studio et lors de nos événements. De nombreux autres articles peuvent être utilisés à la place de ceux listés ci-dessous, mais vous ne prendrez aucun risque en suivant nos suggestions.
Consultez notre calculateur de budget pour vous aider à estimer l'investissement approximatif requis pour un nombre de caméras spécifié (architecture Raspberry Pi).
Demandez une version d'essai ou achetez une licence sur notre boutique en ligne (téléchargement instantané après la finalisation du paiement)

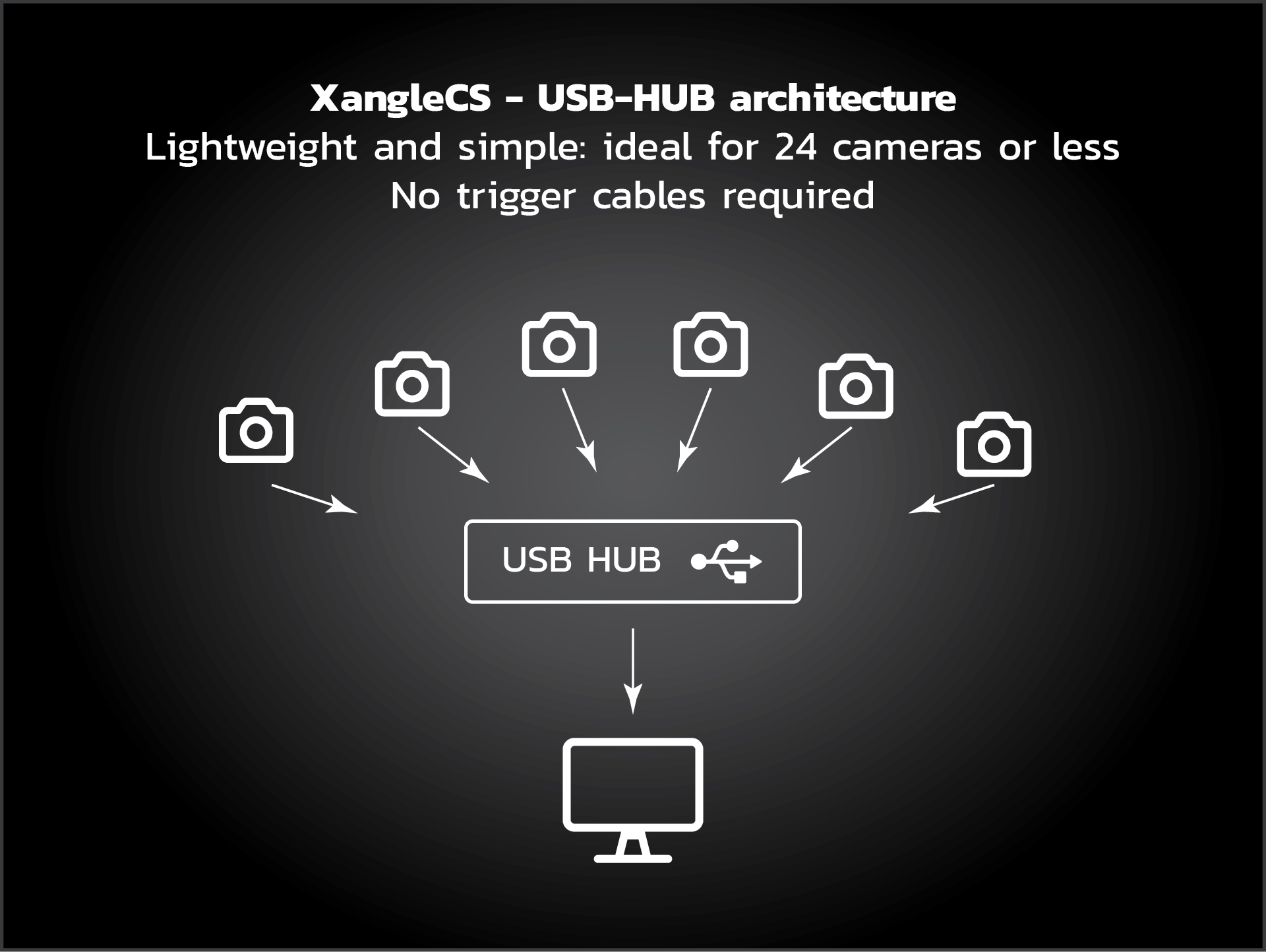

Architecture A : Hubs USB
Configuration minimale, comme vu dans le tutoriel bullet-time. Idéal pour 24 caméras ou moins. Cette liste est pour 6 caméras.
One Windows 10 PC computer (with at least 1x USB3 ports or one USB-C port)
*Optional: One Router (needed to create a local network for your sharing and replay stations)
* Optional: One powerpoint wireless presenter. https://amzn.to/2ppBlrD or https://amzn.to/2QfzhRA (requires the “blackout” button to work)
** NOUVEAU ! Vous pouvez maintenant obtenir mon kit de base entièrement prêt à l'emploi.

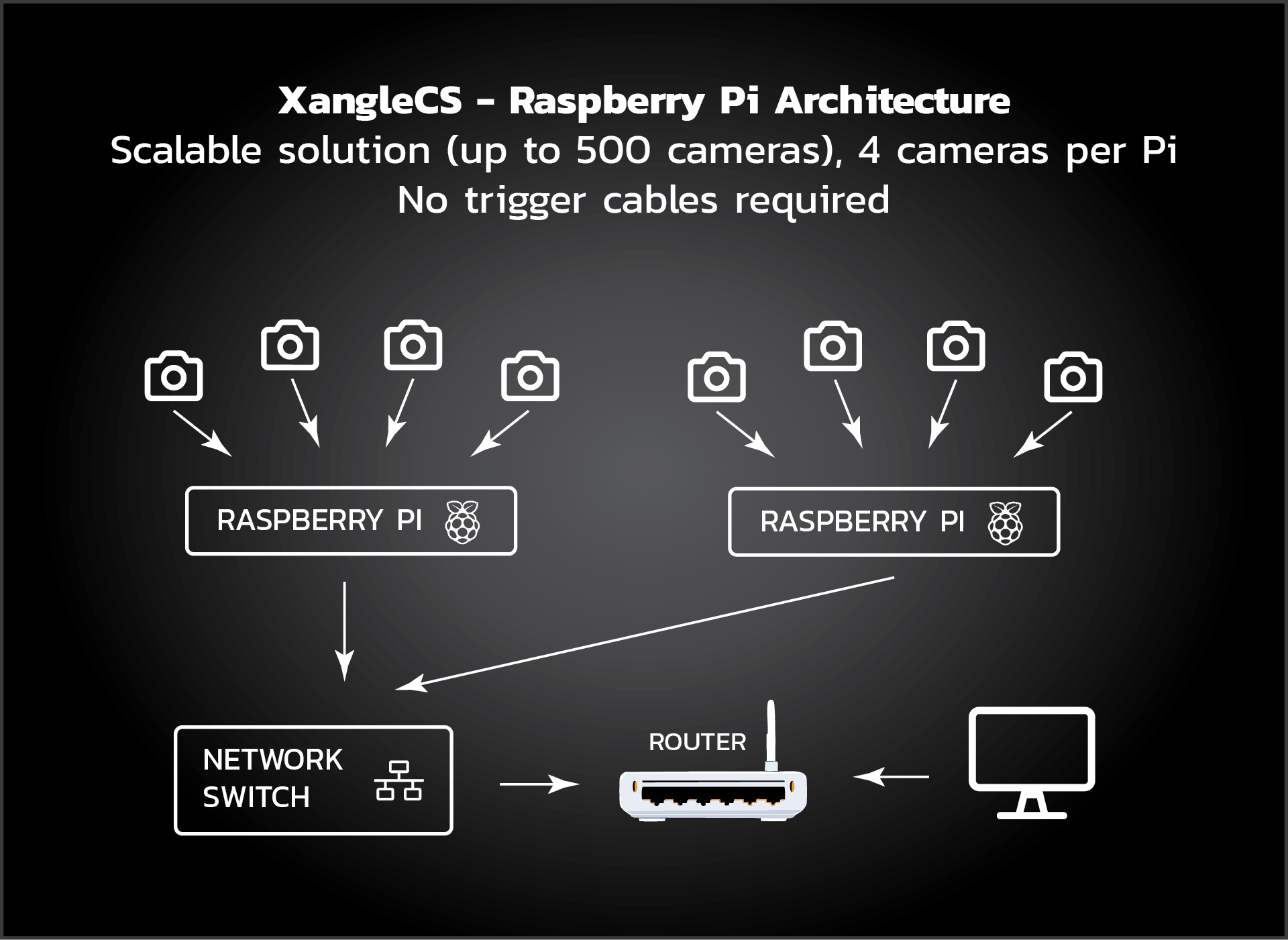

Architecture B : Raspberry Pis (24+ caméras)
- 24x Canon SL3/250D or R100
- 4 sets of 6x ball head
- 6x Ethernet cables
- 6x Raspberry Pi’s
- 1x TP-Link 8-ports switch
- 1x TP-link router
- 6x 16gb C10 microsd cards (get two packs of this one: https://amzn.to/4mPPVDl) **NEW: get pre-flashed cards from our online store.
- One calibration bar (bullet-time only)
- Optional: One powerpoint wireless presenter. https://amzn.to/2ppBlrD or https://amzn.to/2QfzhRA
- One Windows 10 PC computer with an ethernet port: https://amzn.to/2PXPVG5
Architecture C : Raspberry Pis sans disque (24+ caméras)
- 24x Canon SL3/250D or R100
- 4 sets of 6x ball head
- 6x Ethernet cables
- 7x Raspberry Pi’s (7th one for the boot server)
- 1x 16gb C10 microsd card (boot server).
- 1x TP-Link 8-ports switch
- One calibration bar (bullet-time only)
- Optional: One powerpoint wireless presenter. https://amzn.to/2ppBlrD or https://amzn.to/2QfzhRA
- One Windows 10 PC computer with an ethernet port: https://amzn.to/2PXPVG5. You’re going to need one additional ethernet adapter if you need to connect to a local network
Que choisir entre les hubs USB, les Raspberry Pis ou les Raspberry Pis sans disque ?
- 12 cameras or less: No brainer — use USB hubs. It’s the simplest option.
- Between 12 and 24 cameras: It depends. Raspberry Pis will give you faster download speeds across all cameras, especially if you’re shooting in RAW. However, this comes with the added complexity of setting up a network and managing the Raspberry Pis.
- 24 cameras or more: Raspberry Pis all the way. It’s simpler than it sounds. Just flash the microSD cards, insert them into the Pis, and you’re done. No configuration needed: no IP addresses to assign, nothing to tweak. This is how we've been running our 100+ camera rigs since 2016.
- Diskless Pis? That’s our latest addition, and it’s quite amazing. You only need to boot each Pi once with the same microSD card. Once done, your pi can be ran from the network and will always be up to date. Use an additional Pi as a boot server that provides the operating system to all other Pis. Full instructions here: https://doc.xanglecs.com/raspberrypi
Autres fabricants
Les configurations ci-dessus sont toutes optimisées pour les caméras Canon. Nous n'avons aucune affiliation avec Canon, mais nous travaillons avec leurs caméras depuis 2011, et leur SDK a toujours été le meilleur du marché. 90 % de nos utilisateurs travaillent avec des caméras Canon.
Voici les spécificités pour les autres fabricants (qui sont également pris en charge dans XangleCS).
Sony
- Sony cameras can also be triggered by USB, but they are way less accurate than Canon. Adding the Esper multi-cables helps a lot, but still deliver lower precision than Canon on USB.
- Sony a6000 series can be powered by USB Hubs, meaning a single cable for power/trigger/settings/files transfer! Neat!
- For 24+ cameras on a Raspberry Pi architecture, if you are powering your cameras by USB, you’ll need powered USB Hubs connected to your Raspberry Pis (The Pis themselves can’t deliver enough power for your cameras)
GoPro
- These can be used with powered USB hubs with or without batteries
Picam/Arducam
- One Raspberry Pi per Picam/Arducam (we don’t support splitters)
Bullet-time vs photogrammétrie / gaussian splat
L'équipement est le même quel que soit le type de sortie. Mais pour le bullet-time, vous aurez également besoin d'une barre de calibration, soit la nôtre, soit une version DIY.
Équipement supplémentaire
- Camera power (Canon): here’s what I recommend (please don’t run on battery!): https://doc.xanglecs.com/Powering-up-your-cameras-faa85977c9df4307a697e3c6f097dab0
- USB Cables: we’ve been having a couple of issues in the past with the usb cables that come with the Canon cameras. In any case, you’ll want to use angled-connectors / high quality usb cables (shielded) as you’re going to have a lot of electronic components packed in a small area. We’ve been using Startech cables for a while and they are absolutely perfect. Choose the right side for the elbow angle (right angle for SL1, left angle for SL2): https://amzn.to/31tYACb. For the EOS-R, EOS-RP, G7x Mark III and G5x Mark II, a simple elbow adapter is enough. Full frame: https://amzn.to/31oEUPY, Powershot: https://amzn.to/31oL8iP
