Logiciel/photogrammétrie
Une solution entièrement optimisée pour opérer votre scanner de photogrammétrie multi-caméras. Canon, Sony, Android & PiCam. Contrôlez jusqu'à 1000 caméras. Aucun câble de déclenchement requis !
▦
Link Embed Gallery
(3 links, 3 cols)
Hidden in edit mode to keep the editor stable

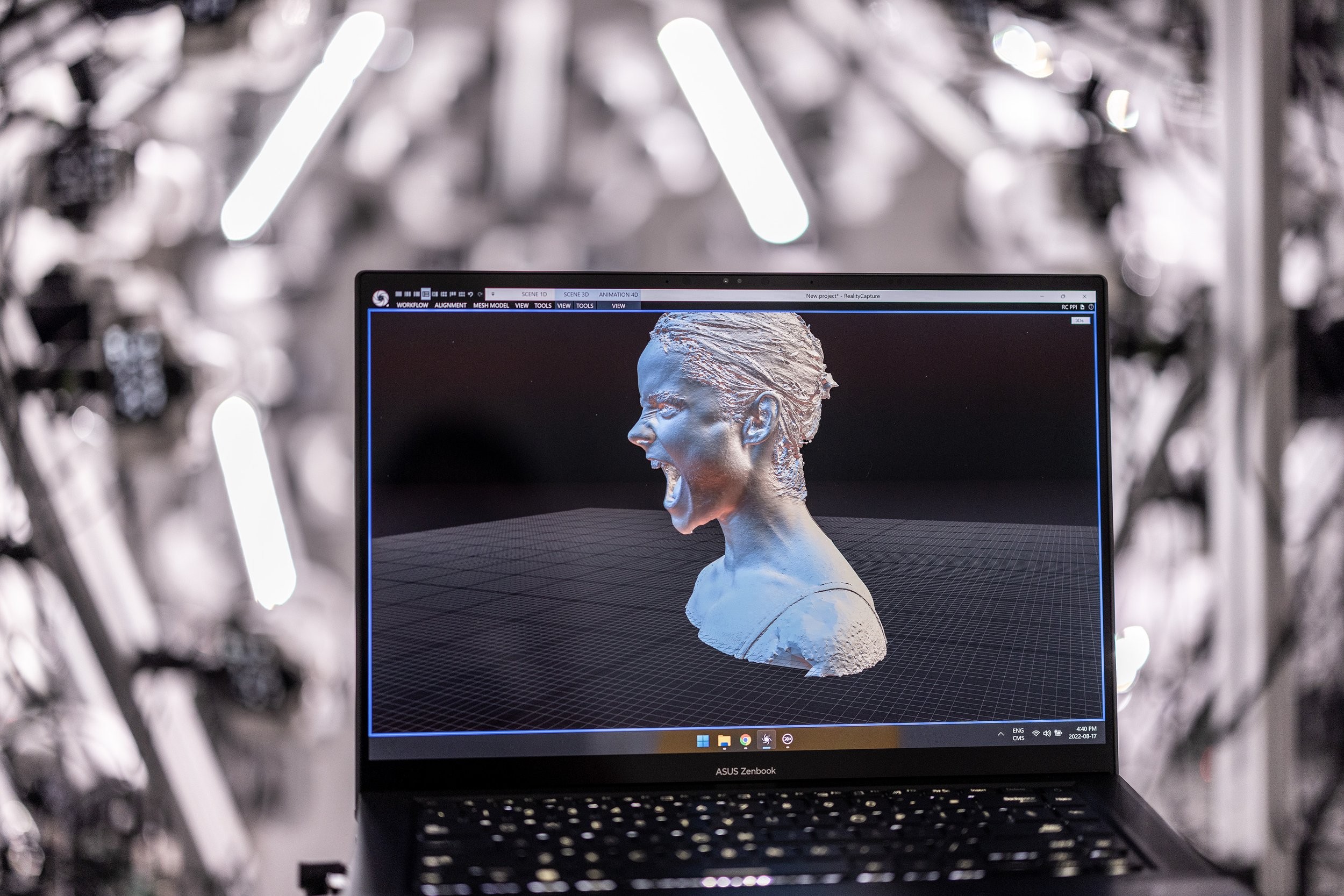

Démo de scan de tête : compte à rebours, déclenchement, revue de l'ensemble de données, revue d'image, construction 3D.
Démo du flux de travail logiciel de base : déclenchement, téléchargement, aperçu depuis Xangle.
LEDs, stroboscopes et caméras, tous contrôlés depuis Xangle - démo complète avec un sujet figé en plein vol.

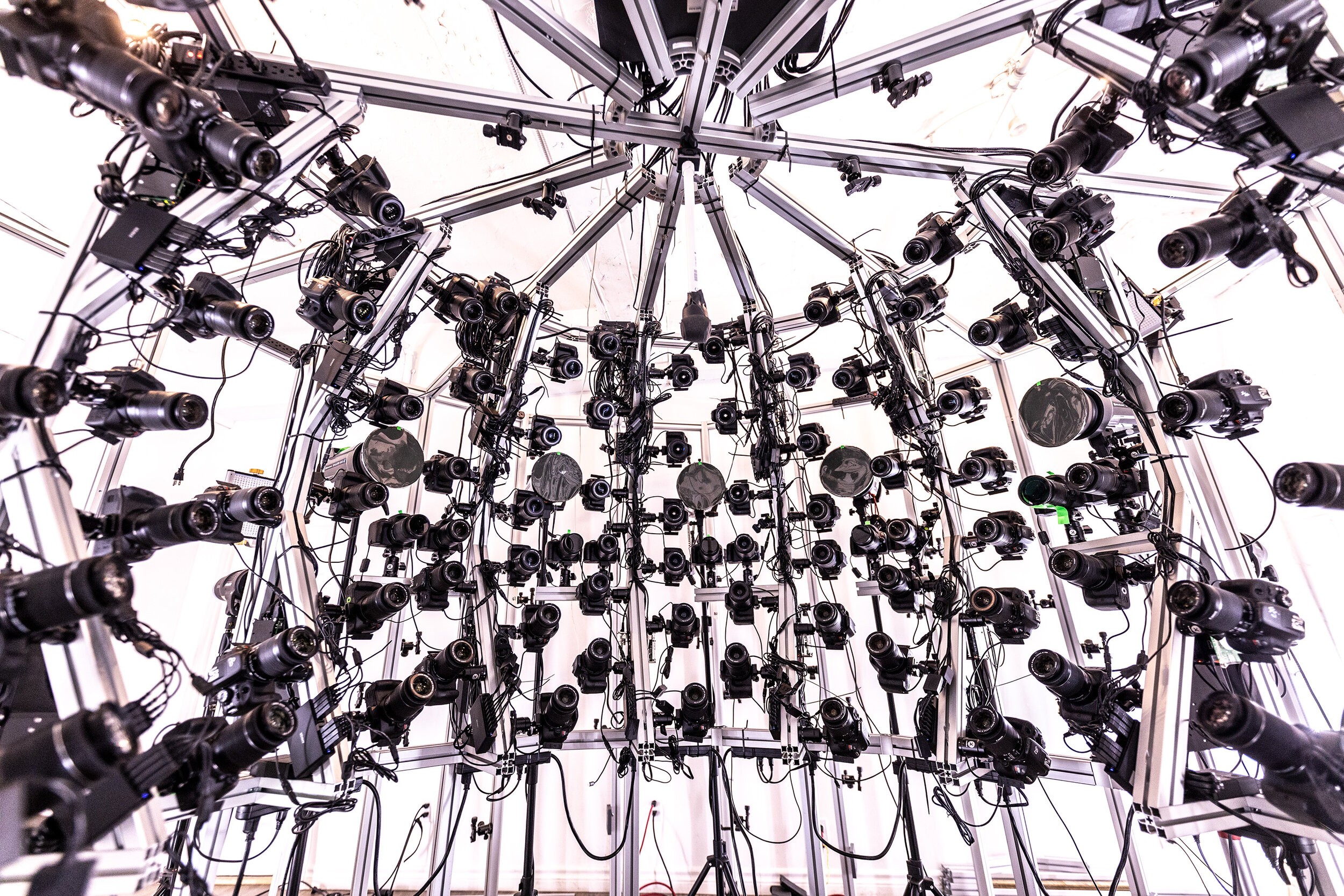

Xangle Camera Server est une solution éprouvée utilisée par les plus grands studios de photogrammétrie. Il est actuellement utilisé quotidiennement au Canada, en Croatie, aux États-Unis, aux Émirats arabes unis, en Inde, en Australie, au Japon, en Espagne, en Corée, au Royaume-Uni et plus encore.
Fonctionnalités clés pour la photogrammétrie avec Xangle Camera Server
Contrôle multi-caméras
- Control all settings from a single interface: iso, f-stop, shutter speed, white balance
- Auto focus cameras lenses all at once, and fine-tuning per camera
- Optical & Digital zoom control (Android, Sony, Canon powershot)
- Live view (Canon, Sony, Raspberry Pi cameras)
- Set camera numbers manually from the interface, or simply by turning on the cameras in the right order
- JPG and RAW support (with jpg extraction from RAW files) en savoir plus
Déclenchement
- No trigger cables required: usb Déclenchement with a precision < 1ms depending on camera model.
- Complex trigger sequences; fire various cameras or lights at specific timing
- Multiple-shots Déclenchement with buffering on the cameras (Canon)
- Burst mode for ROM (range of motion) or OLAT (one light at a time) en savoir plus
Connectivité
- Connect your cameras by usb directly to your Windows computer (24 cameras or less)
- Scale up to 500 cameras using Windows computers and usb-hubs (24 cameras per computer)
- Scale up to 500 cameras using Raspberry Pi computers (4 cameras per Pi) - preferred solution
- Mix camera models with optional trigger compensation delay per model en savoir plus
Vitesse de transfert rapide
- Fully optimized for networked configuration
- Download 176 raw 18mp images on a 1-gigabyte network in 35 seconds (less than 20 seconds on a 10GB network)
- Optimize based on your requirements by lowering jpg preview images, or by skipping jpg extraction of some of the raw files
- Throttle file download on slower networks
- Performance monitoring: optimize your system and find bottlenecks en savoir plus
Moniteurs externes basés sur le web
- Access most of the software modules through a web browser on any device connected to your local network (smartphone, tablet, computer, tv)
- Navigate / lock external devices from the main admin interface en savoir plus

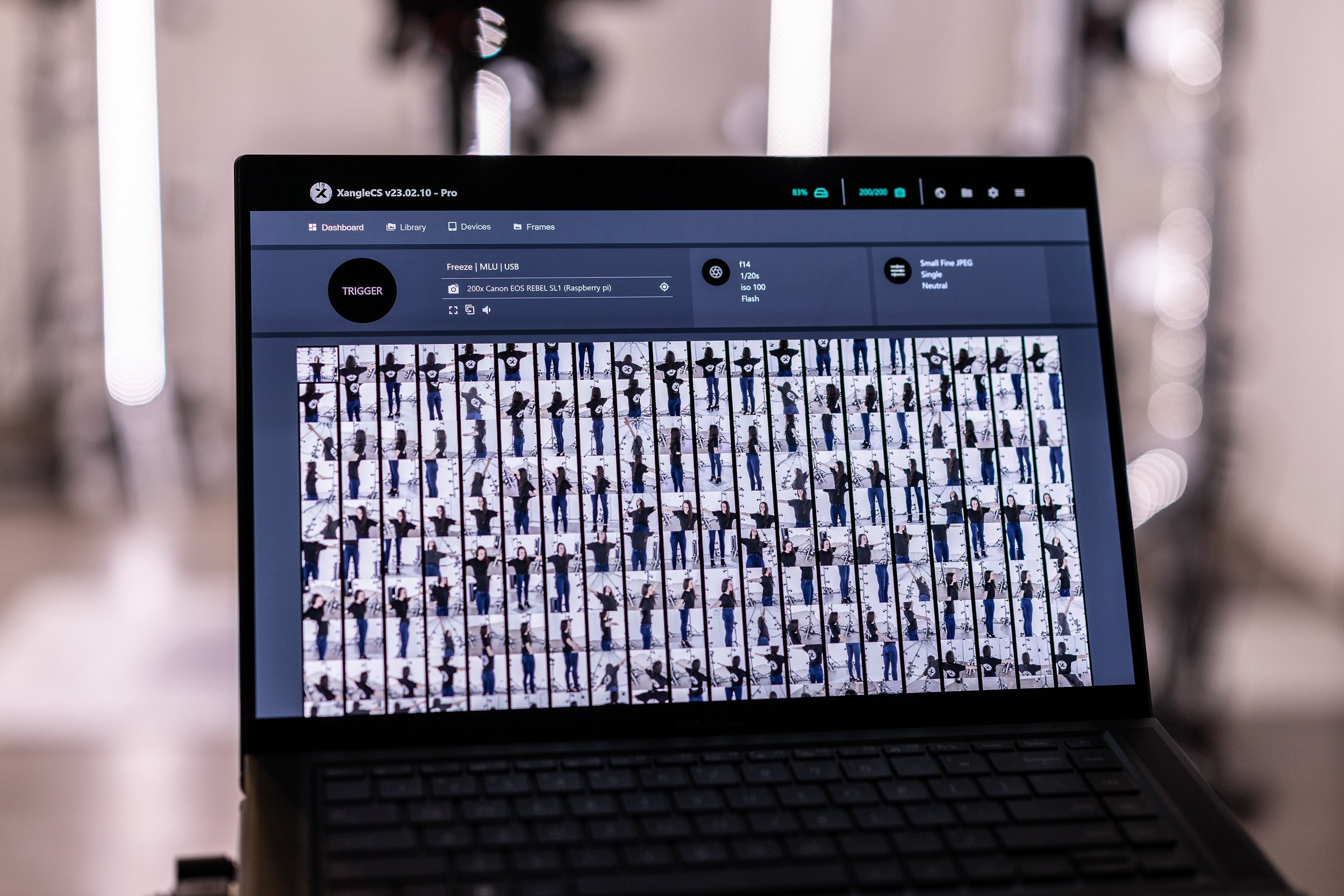

Revue des images
- Thumbnail preview: fit all thumbnails straight on the dashboard or on an external webpage (full screen available)
- Multiple individual frame review: open as many browser pages as needed with specific angles to review (http://ip-address:8091/frame/30 = camera 30 preview)
- Library review gallery: navigate through all sets (left-right keys), individual frames of a set (top-down keys), iterations of a dataset (shift-up/down keys) & rating + comments for each dataset
- Zoom inside any frame & navigate left/right to review details on all frames en savoir plus
Dépannage
- Live notification on camera disconnection
- List & status of all connected nodes (Windows computers, Raspberry Pi computers)
- Raspberry Pi update, reboot from the main user interface
- Disk space monitoring
- Performance graph
- Notification events en savoir plus
Gestion des fichiers / dossiers
- Files and folder naming with tags and presets
- Two lists of presets (usually for your actor name, and FACS title)
- Backup to a local drive or on a FTP server
- Backup specific sets of files (RAW, Original JPGs, Resized JPGs), or specific frame numbers
- Live automatic backup to your external hard-drives. Add multiple backups of specified files (raw, jpg, both) to one or multiple external locations en savoir plus
Contrôle des stroboscopes / flashs
- Delay flashes (half way during the exposure) from the software
- Fire external flashes with precise timing using the XangleBoard en savoir plus
Capture vidéo (Canon uniquement)
- Capture videos from all cameras at the same time
- Start video capture directly from the software without having to switch all cameras to video mode
Contrôle des LED
- Bind color preset with the countdown or trigger time
- Increase brightness at trigger time (pi-cam scanner)
- Turn off all LEDs at trigger time (DSRLs) en savoir plus
Support API & Système de plugins
- Xangle Camera Server API allows multiple remote operations including sending camera trigger signal, change settings, retrieve camera list, etc.
- Extend functionalities with your own plugins en savoir plus
Liste complète des fonctionnalités : /features
Spécifications / prérequis
Windows 10/11 computer
< 25 cameras: usb-hubs
> 24 caméras : Raspberry Pi (4 caméras par Pi - aucune configuration requise), commutateurs réseau, routeur
Schémas & liens vers le matériel : /gear
Comment ça marche ?
- Request a trial license or purchase a license
- Download the software and install it on your computer
- Launch the software
- Connect your cameras by usb in the right order (numbering)
- Run an auto-focus pass
- Trigger the cameras from the dashboard
- Review your images from the Library
Voici une démo complète d'une session à notre studio de Montréal :
▦
